Solutions for SMT Material Handling and Accuracy Issues

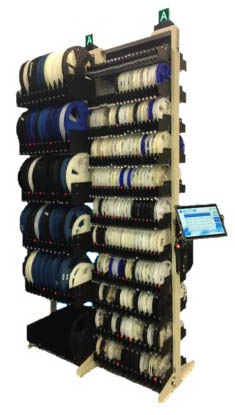

INOCART-Smart Stationary Stockroom Rack
Series SREX700 - SREX130 - SREX140
Features
- Up to 880 seven-inch reels or 480 thirteen-inch reels of stationary storage
- Lights up to identify the parts required for the kit
- Small footprint
- Intelligent sensors detect where reels are placed
- Daisy-chain multiple units together for increased capacity
- Retrieve reels in less than 4 seconds
- Return reels in less than 8 seconds
- Reduces kitting time from hours to minutes
- Accessible from both sides
- ROI in 3 - 6 months, typically
- Flexible and easy to use
- Easily links to any MRP software
- Wi-Fi & Internet ready
- Available in 7, 10, 13, and 15 inch reels, widths of 8, 12, 16, 24, 32, 44, and 56mm
- ESD compliant
| Unit | Model Number | Desc. | Reel Count 8mm | Reel Count 12mm | Reel Count 16mm | Reel Count 24mm | Reel Count 32mm | Reel Count 44mm | Reel Count 56mm |
|---|---|---|---|---|---|---|---|---|---|
 |
SREX700 | 7" reels on 11 trays | 880 | 660 | 550 | 396 | 380 | 220 | 176 |
 |
SREX130 or SREX130-12 (Dual Sided) | 13" reels on 6 trays or 12 trays (15” available on 4 of the trays) | 240/4 80 |
180/3 60 |
150/3 00 |
108/2 16 |
84/16 8 |
60/12 0 |
32/64 |
 |
SREX140 or SREX140-12 (Dual Sided) | Individual smart trays for bagged parts, JEDEC trays and PCB’s 21 inch trays provide one to twelve bin locations per tray in 1.75 inch increments |
|||||||
| SIZE | Max 24” Width x 30” Depth x 89” Height |
| WEIGHT | Less than 200 lbs. |
| STATIONARY | Mounted to the Floor |
| POWER REQ. | 110V-230V, 50/60 Hz, less than 150 VA |
| AIR SUPPLY | None required |
| OS | Microsoft Win 10 Pro included |
| SOFTWARE |
- Includes single package, single location control and visibility |
| ESD | Compliant |
| MONITOR | 12” Touchscreen |
| BAR CODE SCANNER | -Wireless or wired |
| OPTIONS |
- Upgradeable to InoView Software |
